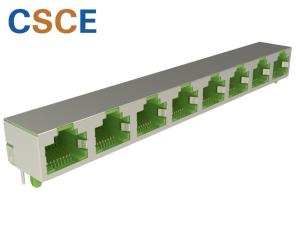

1x8 Port RJ45 Connector Female Jack RJ45 Multiple-Port Connector
Quick Details:
| Specification: | Multiple-port RJ45 | Cross Part NO: | 56A-38880221X01 |
| Mounting: | Thru-hole R/A | Samples: | Available 2-3 Pcs |
Product Specification:
| Operating Life | 750 Cycles MIN. |
| Storage Temperature | -40℃ to +85℃ |
| Housing Material | PBT/PA66/PA46 |
| Operation Temperature | -40℃ to +85℃ |
| Mating/Unmating Force | 2.2KG.F MAX. |
| Contact Resistance | 30milliohm Max |
| Retention Strength | 7.7KG.F MIN Between Jack And Plug |
| Current Rating | 1.5A |
| Contact Material | DiamererI 0.46mm C51000(QSn4-0.3)Phosphor Bronze |
| Voltage Rating | 125v |
| Insert Material | UL94V-0 |
| Withstand Voltage | 1000V AC 50Hz or 60Hz,1MIN. |
| Insulation Resistance | 500 MΩ MIN @ 500V DC. |
Our Services
1) Your inquiry will be replied within 12 hours.
2) We provide OEM, ODM service, the details of the product can be made as your requirement.
3) Excellent before service and after service.
Why Choosing us ?
1. Achieve win-win
2. Competitive price
3. More than 14 years experiences
4. High Quality
5. Lead time:7-10 days
6. Offer technology support.
7. Professional and experienced engineers
If you can't find the exact product you need in the pictures,please don't go away.Just contact me freely or send your sample and drawing to us.We will reply you as soon as possible
Why Choose us
The company insists on the quality policy of "people-foremost,Customer-oriented. Continuous Improvement, lasting management ".And take the business theory of "take the market as the guidance, take the talented person as the cornerstone, take the technology as the core, take the quality as the life".To provide the best service for our customers.
We care about our valued customers and understand the concerns and frustrations you might have, and will try our best to resolve the issues.. We strive to answer all emails as quickly as possible, but due to high email volume it may take time for us to reply. Thanks in advance for your patience!
Contact us first before leaving a negative, we will find a solution to meet your requirement and enhance the satisfaction.
Quality
• Lean production management.
• 100% Tested (Not Just Batch Tested).
• Quality Guarantee:5 Years.
Certification
• ISO 9001:2000,
• ISO14001
• Active Environmental Policy.
Have R&D dept
• OEM Service Offered, Design Service Offered.
• Engineer Can Design Products As You Need,Developer Tooling As Customer Require.
FAQ
Q1: Are you a factory or trading company?
A1: We are a factory, we can guarantee our price is first-hand, very cheap and competitive.
Q2: How does your factory do regarding quality control?
A2: All the products will be 100% checked before the shipment.
Q3: When can I get the price?
A3: Usually we quote within 24 hours after we get your inquiry.
Q4: How could I get a sample?
A4: If you can not buy our product in your local area, we will ship a sample to you.You will be charged a sample price plus all related shipping costs.Express delivery charge depends on the quantity of the samples.
Q5: What is the price of shipping?
A5: Depending upon the port of delivery, prices varies.
Product Drawing
